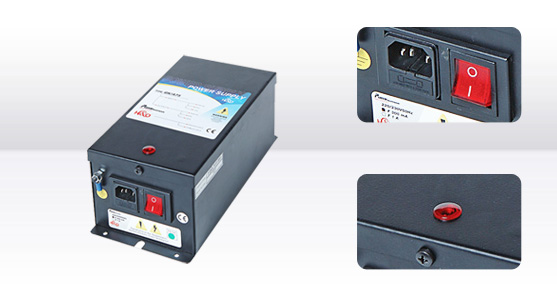

GK75A Power Supply
Power Supply is source with high voltage generator designed for devices of active ionization. Its set-up and operation is simple in use and does not need any additional care. It is possible to supply the operation for more than one static bar.
There is a protection card inside of Power Supply for the system security in case of short circuit. Power Supply cuts down current and disables circuit in connected to it high voltage cable of ionization devices or ionizer. That provides longer life and safety to the transformer, what is inside of power supply.
General Specification
Easy to install / High performance / Safety / Long life
Applications
Coating / Laminating / Plastic bag / Sheeting / Slitting / Rewind / Form fill seal / Stretch wrapping / Wrapping machines / Paper production / Blown film, cast film / Extrusion, flexo sheet / Inkjet, laser / Folding
Technical Spesifications
Main Voltage: 220-230 VAC / 110V AC
Main Frequency: 50 / 60 Hz
Main Connection: IEC-320 Europe Type
Fuse: 160 m AT/A
Output Voltage: 7.5 k VAC
Max Output: Less than 5 mA
Connections: 4
Ambient Temperature: 0 - 60 C
Weight: 3.2 Kg
Dimensions: 127.5 x 260 x 100 mm (width x height x length)
Approval: CE
100HZ Power Supply
PULS 100HZ Power Supply is used in fast running machines in combination with tandem ionizing bars. Any surface charges that might disrupt production will be reliably and effectively removed - even at high speed operations- by using the ionizing unit. Tandem ionizing bars are also suitable for machine with speed of 150m/min
General Specification
Easy, flexible mounting / Small dimension / Safety / Long life
Applications
Coating / Laminating / Plastic bag / Sheeting / Slitting / Wind-Rewind / Form fill seal / Stretch wrapping / Wrapping machines / Paper production / Blown film, cast film / Extrusion, flexo sheet / Inkjet, laser / Folding
Technical Specifications
Main Voltage: 220-230VAC
Frequency: 50/60 Hz
Main Connection: IEC-320 European Type
Fuse: 160 m AT/A
Output Voltage: 7.5 kV
Max. Load: Equivalent to 4meters of ionizing appliances and cables
Max. Output: Less than 5 mA
Connections: 4
Amblent Tempeature: 0 - 60 C
Weight: 3.2 kg
Dimensions: 127.5 x 260 x 100 mm (width x height x length)
Approval: CE
Application

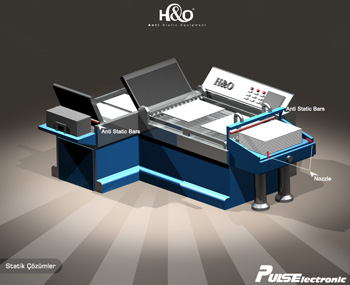

Paper Folding Machine Application Sheet
Although paper is not normally associated with static problems, during printing, the paper is dried and the moisture levels drop considerably leaving the substrate susceptible to static charges. When paper is introduced to a folding application such as an MBO folder, the charge on the substrate can cause jamming which will lead to down time and loss of production.
By positioning two (one either side of the web) PULSElectronic ionising bars across the web prior to entry into the folder, you will neutralise the substrate to ensure that the material will fold correctly.
Further Additions may be made depending on how much static is generated during the folding process. Static bars can be added at the transfer point and the exit point to ensure that the collation area is static free.
